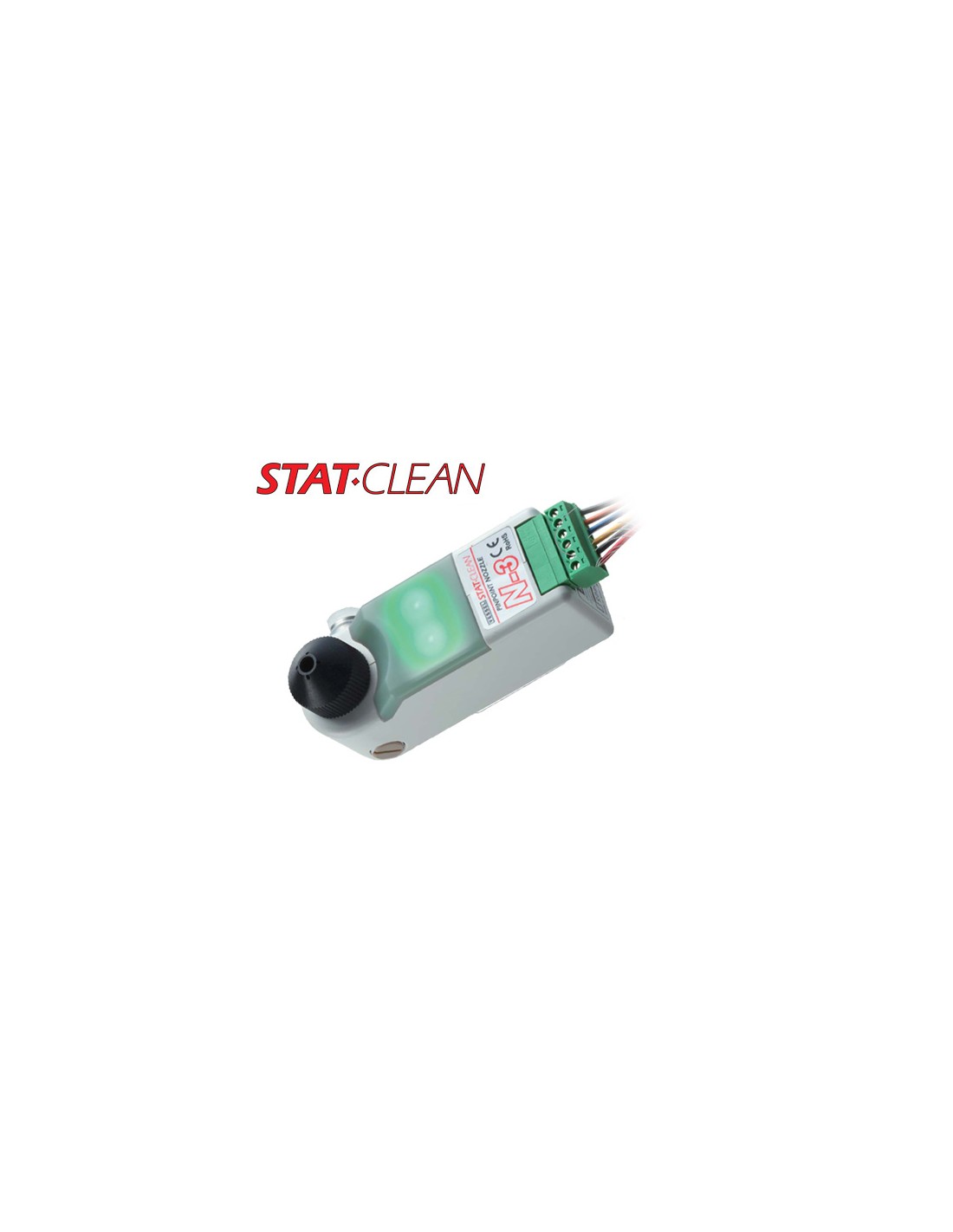

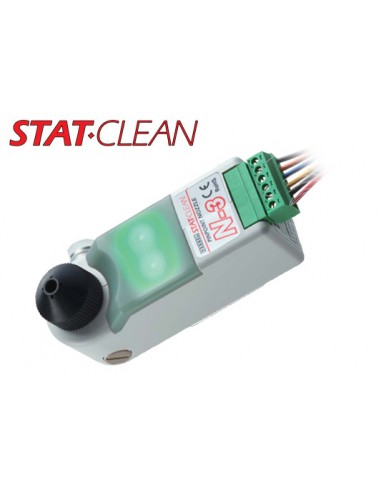

PINPOINT COMPACT IONIZING NOZZLE (3.7”L x 1.3”W x 1.8”H) | VESSEL N-3

VESSEL N-3

Reference N-3

Ion Generation Method	High-Voltage AC Corona Discharge (37kHz)
Discharge Voltage	AC 5.6K V(p-p)
Input Voltage	DC 24V ±5% ripple (p-p) 10% max
Power Consumption	90mA max
Applied Source	Clean Air: 14.5~87psi Nitrogen Gas: 14.5~87psi
Air Consumption	29psi
Ozone Generation	0.05ppm or less (measured at 24")
Working Temp. Range / Working Humidity Range	41~104°F / 35~65% RH (no dewing)
Working Temp. Range / Working Humidity Range	32~140°F / 35~85% RH (no dewing)
Decay Time	±1000V~±100V, within 0.7sec, 43.5psi/6" (at time of factory shipment)
Weight	0.23 lb (106g)
Ion Balance	Within ±10V or less (at time of factory shipment)
Materials	Housing: ABS Resin Nozzles: Polyacetal Resin Needle Pole Electrode: Tungsten
