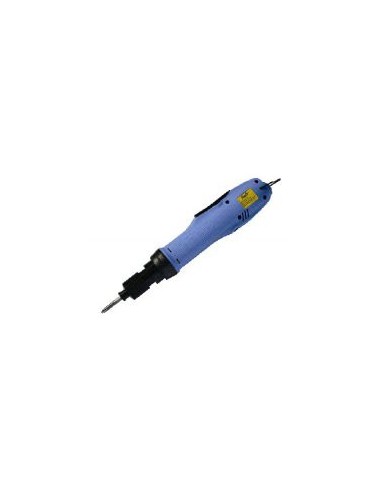

ASA HIGH TORQUE FULL AUTO SHUT OFF ELECTRIC SCREWDRIVER|ASA 7000 SERIES

ASA-7000

Reference ASA-7000

Description

ASA-7000/ASA-7000(PS)	Start method: ASA-7000(Level Start Type), ASA-7000(PS)(Push To Start Type) Torque Range: 7.0~20.0kgf-cm (6.1~17.4lbf-in) Controller: APM-301B [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC) AM-65 {Digital Management System} [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC) No Load Speed: 400~700rpm Available Screw Support: 3.0~4.0mm/0.12~0.16in (Machine Screw) or 2.6~3.5mm/0.10~0.14in (Tapping Screw) Available Bit Size: Ø5, 5.0mm Hex Shank, 6.35(1/4") Weight: 670g(1.47lb) & 740g(1.6lb)[PS], Length: 265mm(10.4in) & 269mm(10.6in)[PS], Grip Diameter: 39mm(1.54in) Right Angle Head (90°) is available for Level Start Type Gun Type-Grip is available for Push To Start Type ESD Type is Available for ordering

ASA-7000/ASA-7000(PS)

Start method: ASA-7000(Level Start Type), ASA-7000(PS)(Push To Start Type)
Torque Range: 7.0~20.0kgf-cm (6.1~17.4lbf-in)
Controller: APM-301B [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)
AM-65 {Digital Management System} [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)
No Load Speed: 400~700rpm
Available Screw Support: 3.0~4.0mm/0.12~0.16in (Machine Screw) or 2.6~3.5mm/0.10~0.14in (Tapping Screw)

Available Bit Size: Ø5, 5.0mm Hex Shank, 6.35(1/4")
Weight: 670g(1.47lb) & 740g(1.6lb)[PS], Length: 265mm(10.4in) & 269mm(10.6in)[PS], Grip Diameter: 39mm(1.54in)
Right Angle Head (90°) is available for Level Start Type
Gun Type-Grip is available for Push To Start Type
ESD Type is Available for ordering
