Smooth and accurate operations for many kinds of applications, such as drilling, tapping, reaming and tube rolling, etc.
| Model | Type | Drilling Capacity mm |
Free Speed (about) rpm |
Overall Length (about) mm |
From Center to Outside (about) mm |
Feed Length (about) mm |
Weight (about) kg |
Air Consumption m 3／ min |

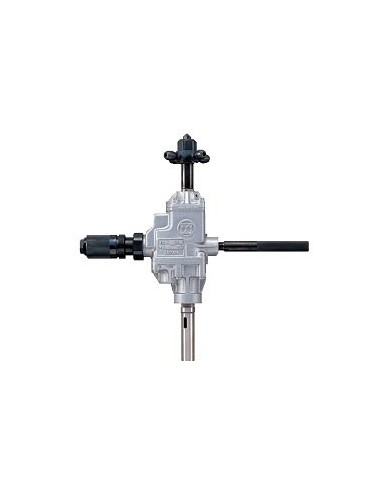

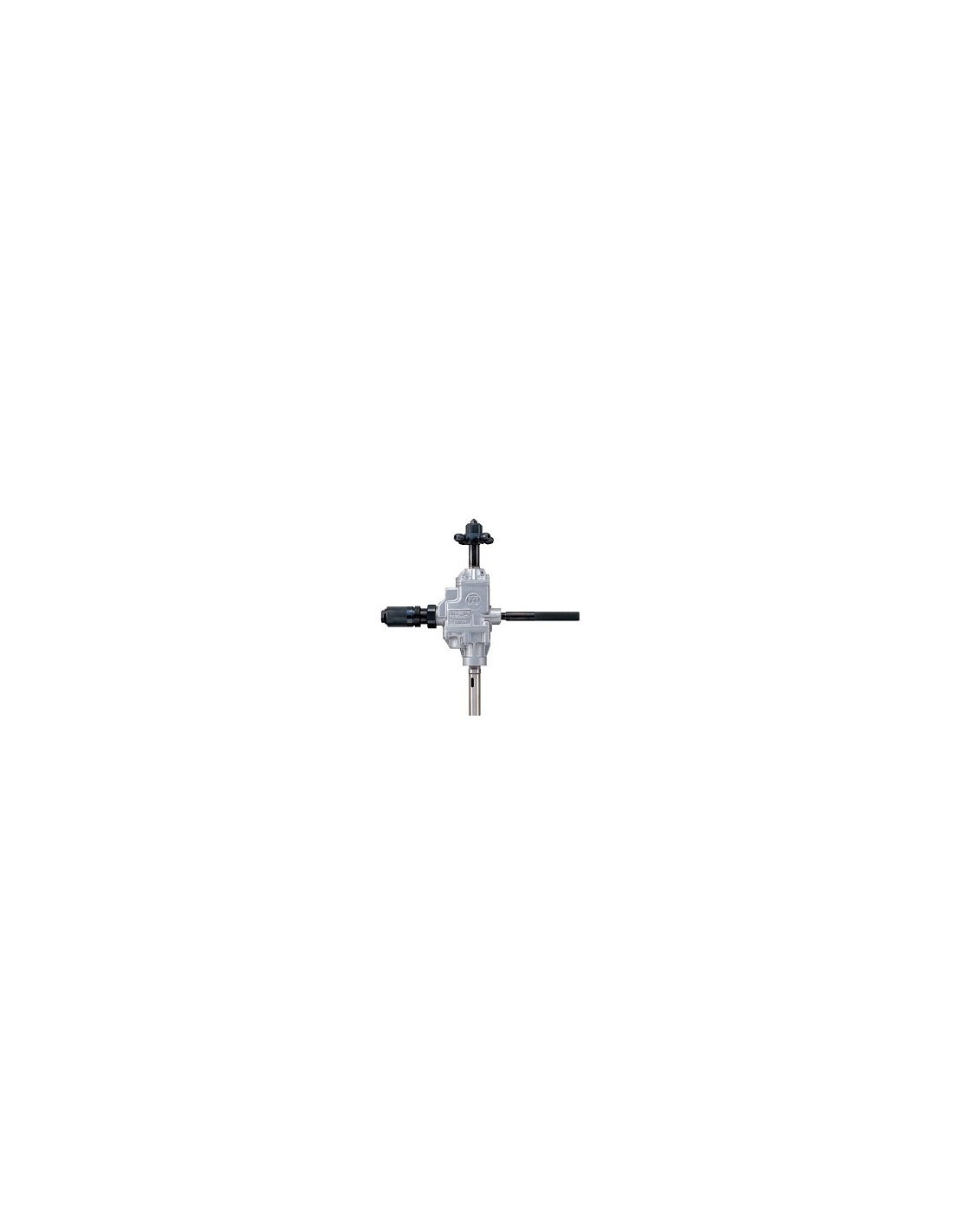

| URD-22RR | Self-Returning | 22.0 | 600 | 442 | 39 | 70 | 5.8 | 1.3 |
※Recommended Air Pressure : 0.6MPa
※Air Hose Size (Inside Diameter) : 12.7mm
