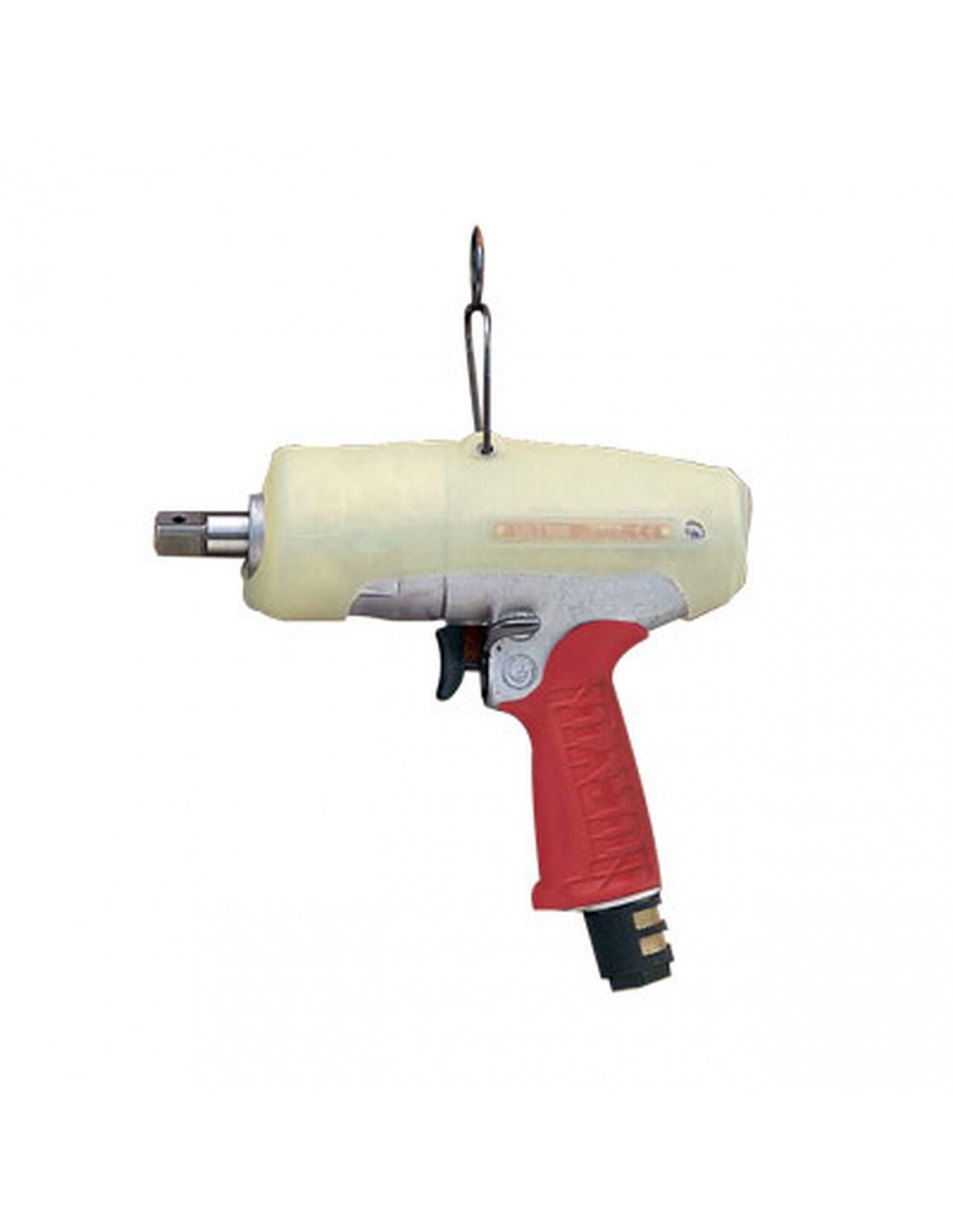

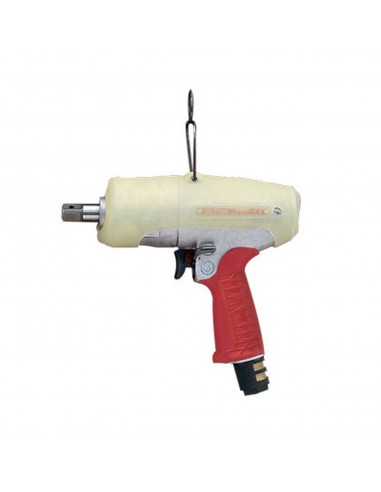

AIMCO Pulse Tool, model# UAT-100L; available to order from Flexible Assembly Systems.
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events
Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing in a more efficient and even torque event
TECHNICAL SPECIFICATIONS
| TYPE | Pulse Tool |
| STYLE | Pistol Grip |
| MIN TORQUE - NM | 60 |
| MAX TORQUE - NM | 110 |
| MIN TORQUE - FT LBS | 44.4 |
| MAX TORQUE - FT LBS | 81.4 |
| FREE SPEED - RPM | 5200 |
| AIR INLET - INCHES | 1/4 |
| HOSE SIZE - INCHES | 3/8 |
| WEIGHT - KG | 1.7 |
| WEIGHT - LBS | 3.7 |
| DRIVE SIZE | 1/2'' square |
| SHUT-OFF | Yes |
| LENGTH - MM | 199 |
| LENGTH - INCHES | 7.8 |
